McCloskey I54R Impact Crusher | Rokbro Equipment NZ

Details
The I54R is built around a 1200mm (48″) x 1335mm (53″) four-bar impactor with a 1360mm (53.5″) x 950mm (37″) feed opening. An independently vibrating double-deck grizzly pre-screen removes the majority of the fines in advance of the crushing chamber, increasing capacity and reducing wear.

McCloskey I54R Impact Crusher Overview

The McCloskey I54R Impact Crusher is a high-output mobile crushing solution designed for the toughest materials and heaviest workloads. Featuring a 1200mm x 1335mm (48" x 53") four-bar impactor and a large 1360mm x 950mm (53.5" x 37") feed opening, the I54R delivers unmatched productivity and material reduction — even with oversized input. Its robust recirculating system, complete with a 14' x 6' double-deck post-screen, allows for precision screening and a finished product straight from one machine.

Key Features

  • Engine Power: Available with either a CAT C13 or Volvo DC13 engine for high-performance crushing in any environment

  • Heavy-Duty Impactor: Four-bar rotor and large chamber for consistent crushing of concrete, rock, and recycled material

  • Pre-Screen Efficiency: Double-deck vibrating grizzly pre-screen removes fines before they reach the impact chamber, improving wear life and output

  • Recirculation System: 14' x 6' double-deck screen with return conveyor enables closed-loop processing for a clean, spec product

  • Mobility & Weight: Approximately 66,000kg — engineered for transportability and fast site setup

Applications and Performance

The I54R is purpose-built for high-demand applications, such as:

  • Quarrying and aggregate production

  • Concrete, C&D, and asphalt recycling

  • Road and infrastructure development

  • High-volume mobile crushing operations

Capable of producing up to 500 tonnes per hour, the I54R makes it possible to meet tight project timelines without sacrificing quality or efficiency.

Why Choose the McCloskey I54R?

For contractors who need a powerful impact crusher with integrated screening and recirculation, the McCloskey I54R is the ultimate solution. Its rugged design, large impact chamber, and efficient screening circuit allow operators to crush and classify material in a single pass — reducing operating costs and boosting productivity on every job site.

CAPACITY Engine CAT C13 or Volvo DC13
CAPACITY Weight 66,000kg Approx
CAPACITY Recirc screen Double deck 14'x6'
CAPACITY Production Rate up to 500 TPH
download full tech spec

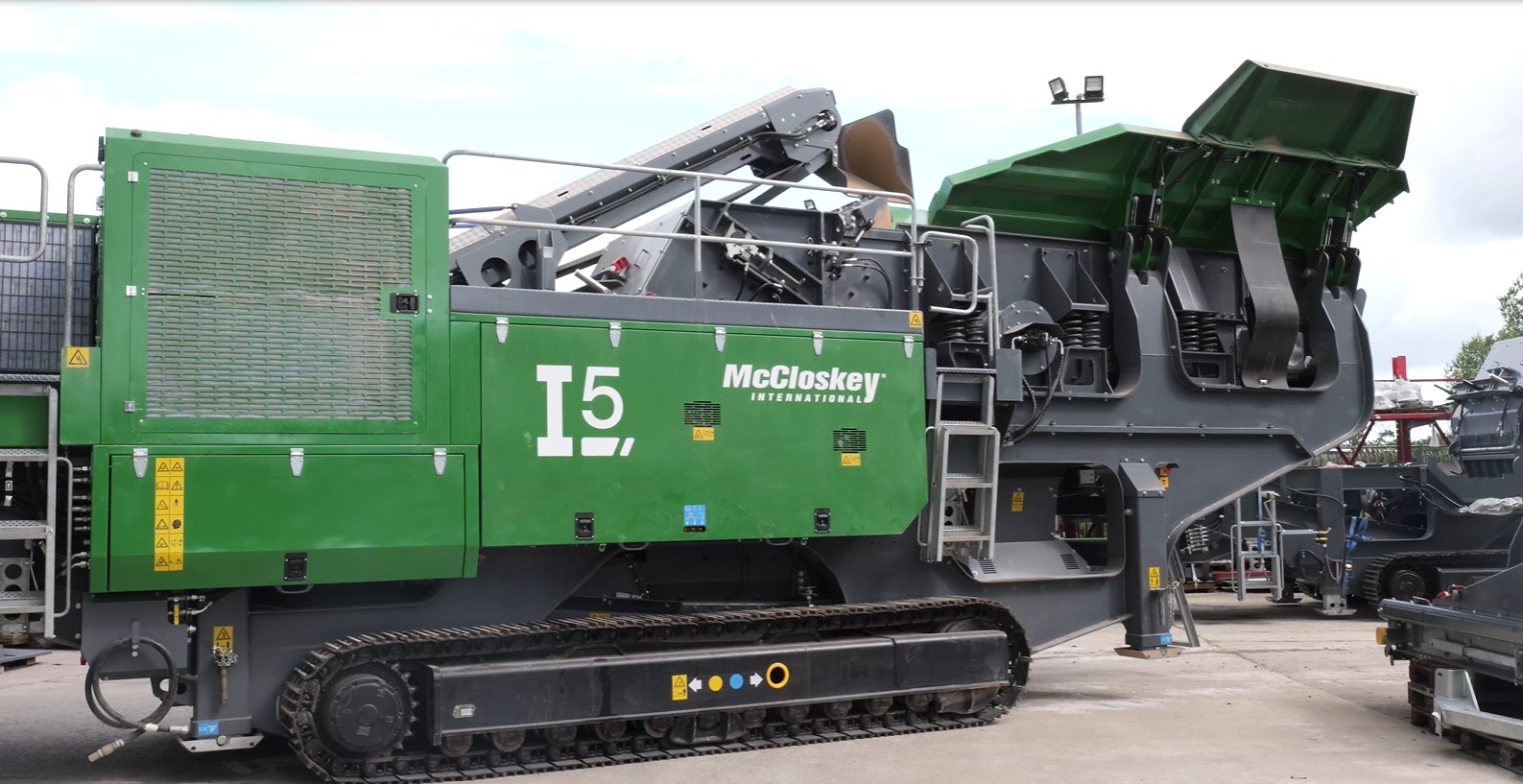

I54R RHS FRONT ISO
Crushers | Rokbro Impact Crushers | Rokbro // McCloskey I54R Impact Crusher | Rokbro Equipment NZ

McCloskey I54R Impact Crusher | Rokbro Equipment NZ Gallery

// Crushers | Rokbro Impact Crushers | Rokbro

MACHINE BENEFITS

Load Sensing Pumps
E-SERIES MACHINES
WIRELESS REMOTE CONTROL
KEESTRACK-ER REMOTE MONITORING
Load Sensing Pumps
Load Sensing Pumps

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

E-SERIES MACHINES
E-SERIES MACHINES

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

WIRELESS REMOTE CONTROL
WIRELESS REMOTE CONTROL

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

KEESTRACK-ER REMOTE MONITORING
KEESTRACK-ER REMOTE MONITORING

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

// FAQs

frequently asked questions

Do I need a steel Apron feeder or a belt feeder on my scalping screen?

The general perception in NZ is a Steel apron feeder is better. This isn't always the case. In most applications a belt feeder scalping screen is better than a apron feeder. The only application where a steel apron feeder comes into its own is sharp rock or feeding large material from the quarry face. In river alluvial rock, topsoil & Compost, sand or small material (200mm-) applications a belt feeder is a far better option.

Is a Jaw/Cone or a closed circuit impactor better?

There's a lot of variables in this. Are you a contractor who moves from site to site often? What is your main product from a revenue point of view- Could you use a Jaw/Cone 90% of the time and possibly hire an impactor for 1 month of the year to cover demand for certain products? What is your fines content? What's your required throughput? What's your feed size?   Alot of New Zealand have tunnel vision for impact crushers because old mate down the road has one. Remember every quarry is different. We would advise to try a cone crusher if you ever have an opportunity. Don't take someone else's word for it. Where a cone doesn't work for one quarry it may be perfect for another. Think of your long term costs. Initial capital expenditure may be more yes but blow bars are not cheap. There's a reason why all the major quarries in New Zealand run with a Jaw/Cone set up.

Do i need a stacker for my operation?

In short, yes you do. You may not know it as you've never had one. If you have the space for a stacker, take our advise and buy/hire one. Thank us later. The general comment after some buys a stacker is "I should have bought this years ago". As the old saying goes, its the cheapest loader you'll ever buy. Yes of course you still need to pick the material up to load trucks but you would be shocked at the amount of diesel you'll save and the pressure if takes off a loader operator. The downside to stackers, particular on larger material is segregation. There is ways to mitigate this problem. If you have any questions talk to our team.
