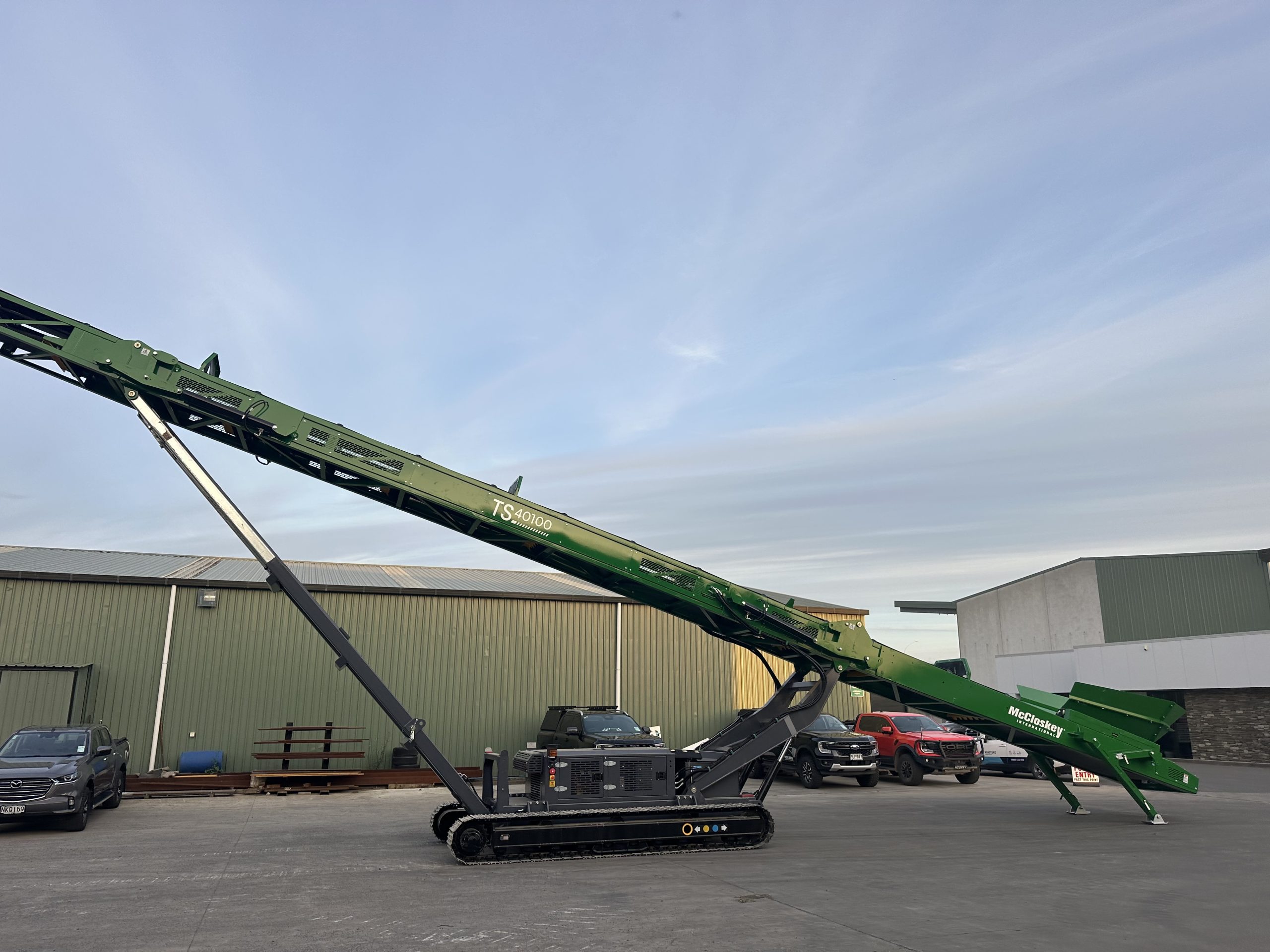

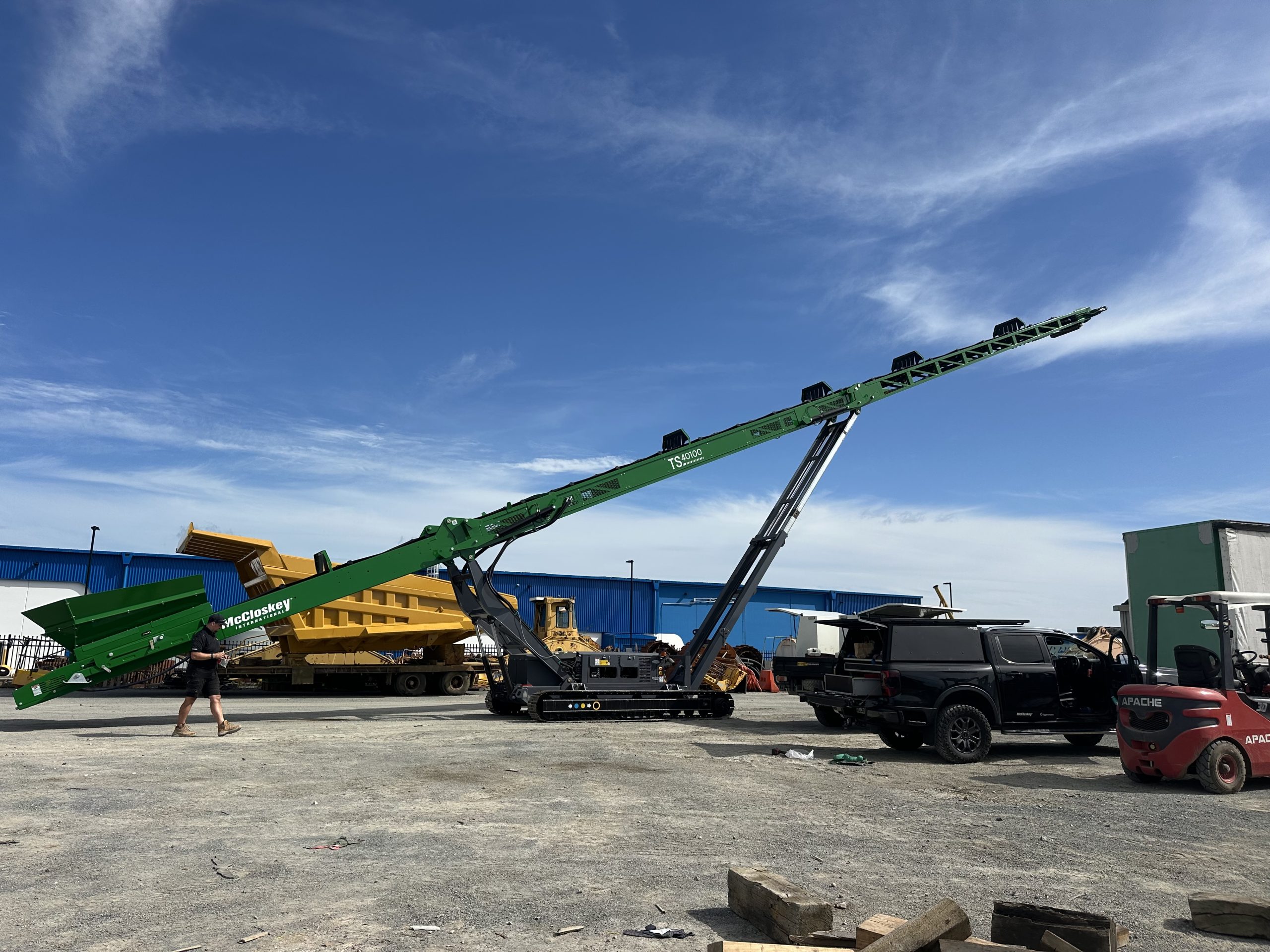

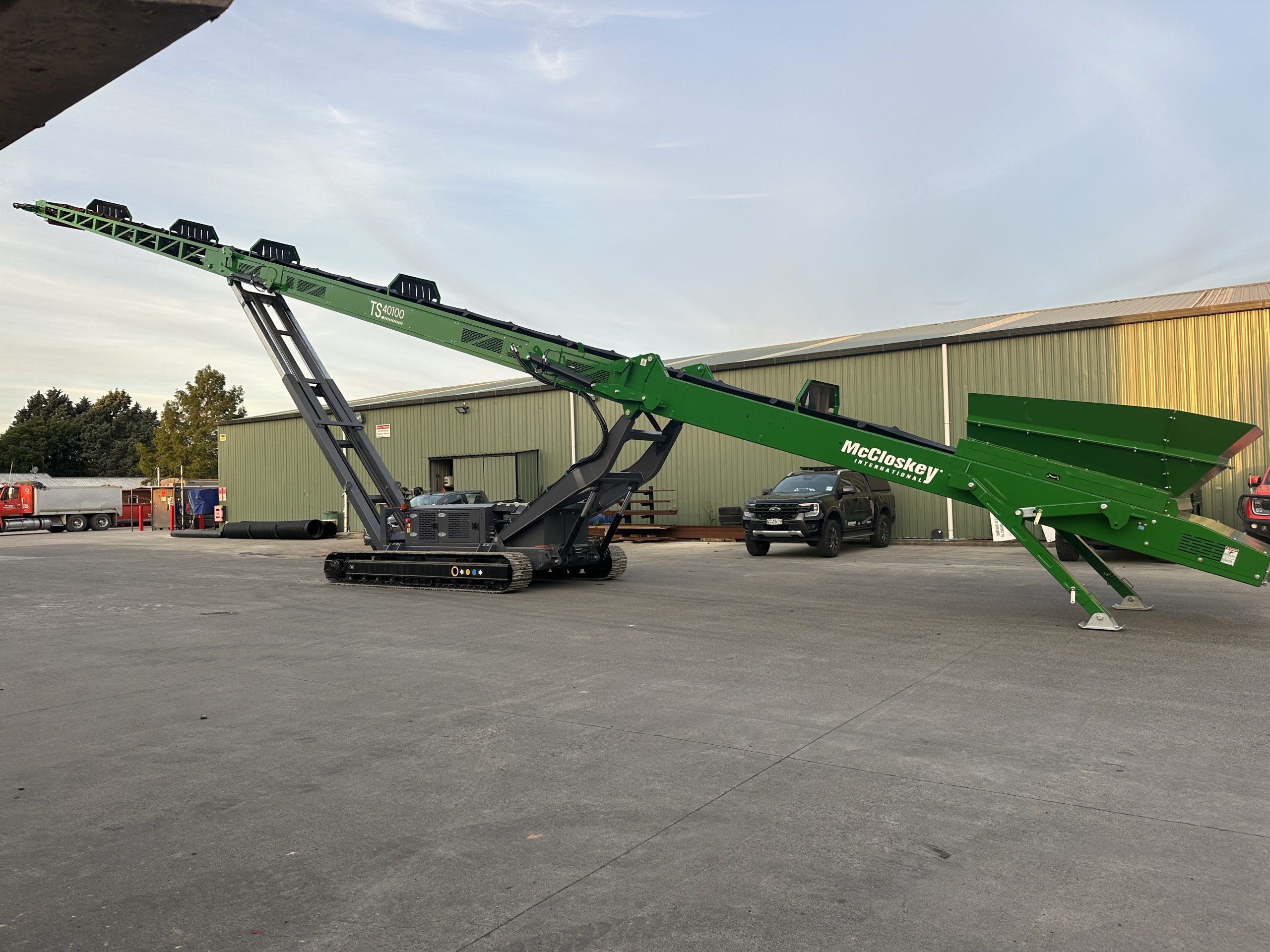

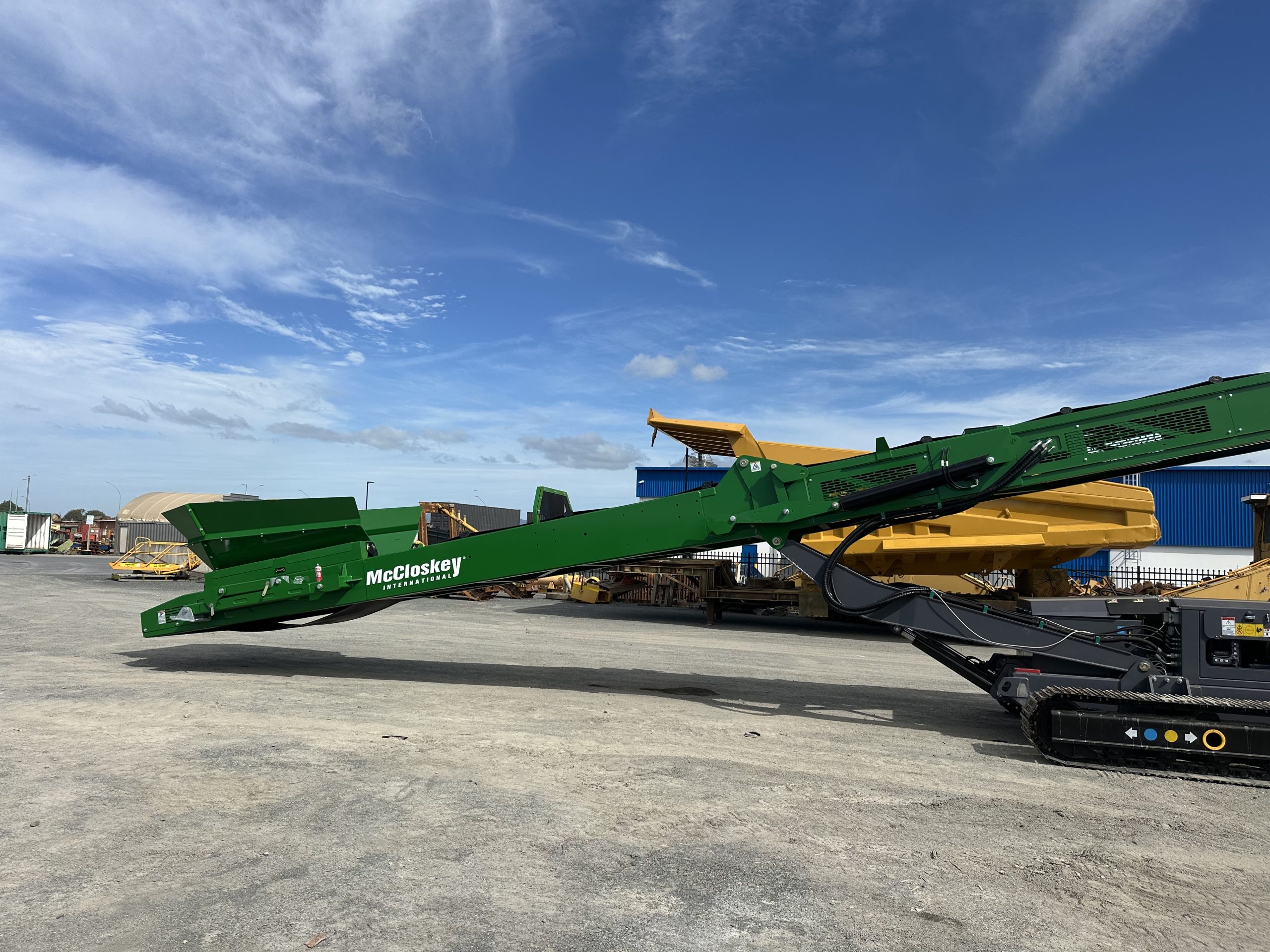

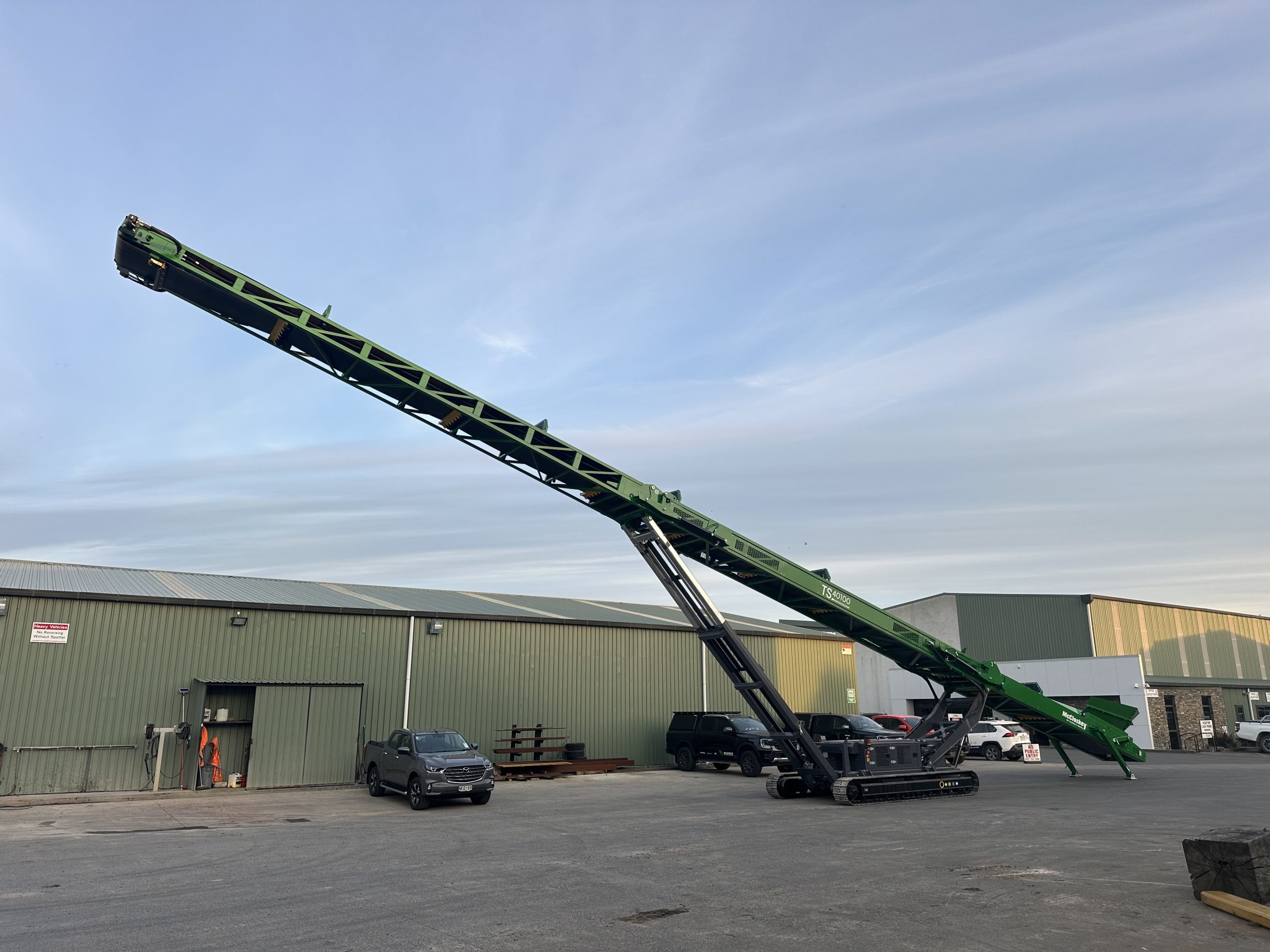

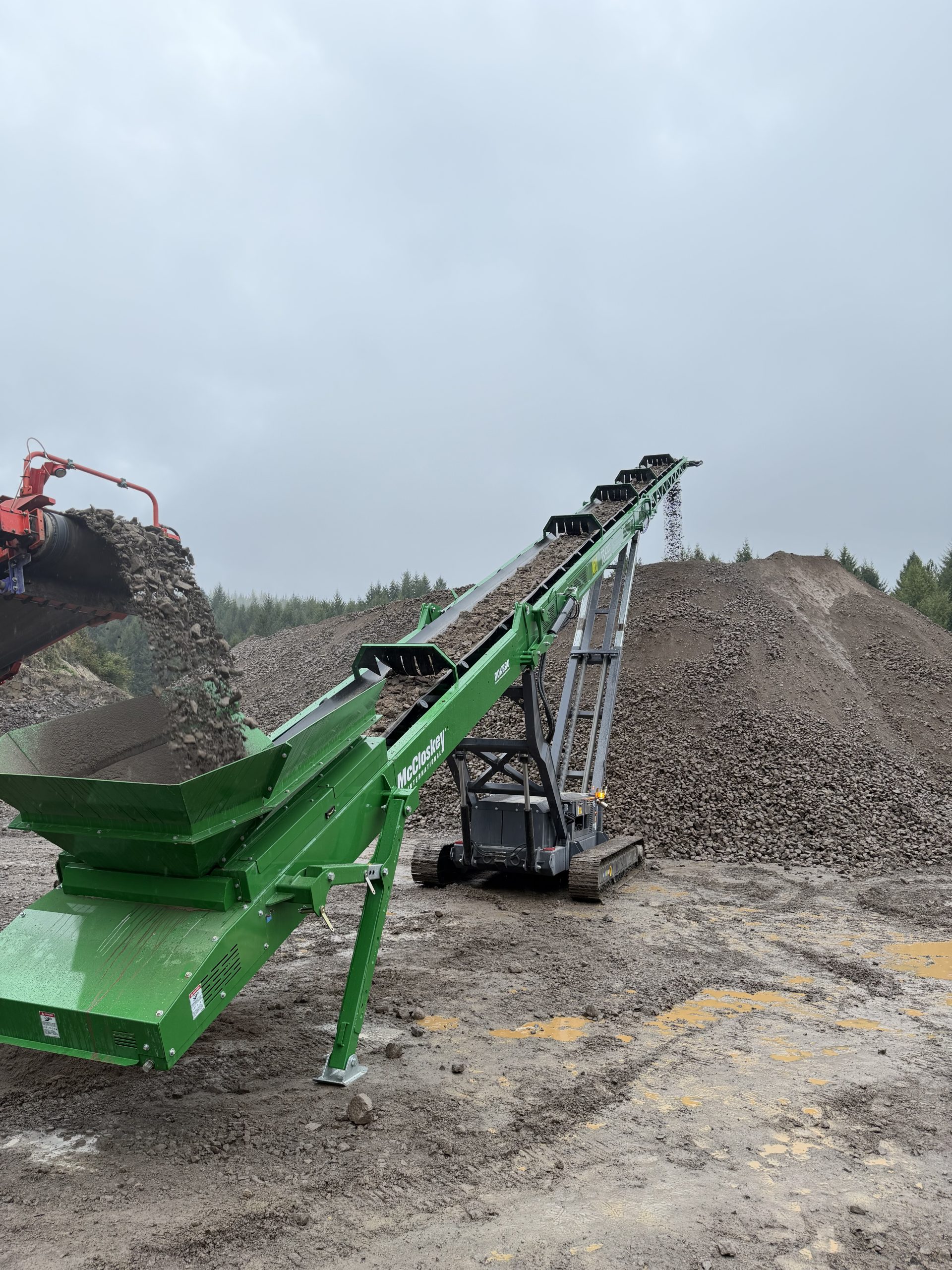

McCloskey TS40100 – 100FT Tracked Stacker

Details
The McCloskey TS40100 is a self-contained 100ft tracked stacker engineered for high-capacity stockpiling in large-scale operations. Delivering up to 800+ tonnes per hour, the TS40100 is designed to efficiently transfer and stack material from crushers, screens, or directly from bulk sources — reducing reliance on loaders and minimizing double handling. With a 30.5m (100’) conveyor length, 13m stockpile height, and rugged tracked mobility, this stacker is ideal for operations demanding serious throughput and seamless integration with heavy-duty material processing equipment. Applications and Performance Perfect for:
  • High-volume quarry and aggregate sites
  • Mining and bulk material stockpiling
  • Port and terminal operations
  • Industrial-scale mobile crushing and screening systems
The TS40100 enhances efficiency by reducing the need for additional handling equipment, allowing for faster material transfer, reduced operational costs, and increased site safety. Why Choose the McCloskey TS40100? For operators requiring the highest levels of productivity and versatility, the McCloskey TS40100 is a standout solution. It combines long-reach capabilities, exceptional throughput, and intuitive controls in a mobile format that’s easy to deploy and operate — making it the ideal choice for bulk handling on a grand scale.
CAPACITY Operating Rate 800 TPH*
CAPACITY Stockpile Height 13 metres
CAPACITY Conveyor Width 1000mm (40”)
CAPACITY Conveyor Length 30,500mm (100’)
download full tech spec
TS40100 NEW DESIGN LHS BACK
TS40100 NEW DESIGN RHS FRONT
TS40100 NEW DESIGN RHS BACK
TS40100 NEW DESIGN LHS FRONT
Stackers Tracked Stackers Range // McCloskey TS40100 – 100FT Tracked Stacker

McCloskey TS40100 – 100FT Tracked Stacker Gallery

// Stackers Tracked Stackers Range

MACHINE BENEFITS

Load Sensing Pumps
E-SERIES MACHINES
WIRELESS REMOTE CONTROL
KEESTRACK-ER REMOTE MONITORING
Load Sensing Pumps
Load Sensing Pumps

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

E-SERIES MACHINES
E-SERIES MACHINES

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

WIRELESS REMOTE CONTROL
WIRELESS REMOTE CONTROL

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

KEESTRACK-ER REMOTE MONITORING
KEESTRACK-ER REMOTE MONITORING

A primary crusher with superior shaping ability, the R5 Impact Crusher fills a variety of roles using just one piece of equipment. The R5’s built in pre-screen’s, post-screens and recirculation conveyor ensures maximum product quality and throughput.

// FAQs

frequently asked questions

Do I need a steel Apron feeder or a belt feeder on my scalping screen?

The general perception in NZ is a Steel apron feeder is better. This isn't always the case. In most applications a belt feeder scalping screen is better than a apron feeder. The only application where a steel apron feeder comes into its own is sharp rock or feeding large material from the quarry face. In river alluvial rock, topsoil & Compost, sand or small material (200mm-) applications a belt feeder is a far better option.

Is a Jaw/Cone or a closed circuit impactor better?

There's a lot of variables in this. Are you a contractor who moves from site to site often? What is your main product from a revenue point of view- Could you use a Jaw/Cone 90% of the time and possibly hire an impactor for 1 month of the year to cover demand for certain products? What is your fines content? What's your required throughput? What's your feed size?   Alot of New Zealand have tunnel vision for impact crushers because old mate down the road has one. Remember every quarry is different. We would advise to try a cone crusher if you ever have an opportunity. Don't take someone else's word for it. Where a cone doesn't work for one quarry it may be perfect for another. Think of your long term costs. Initial capital expenditure may be more yes but blow bars are not cheap. There's a reason why all the major quarries in New Zealand run with a Jaw/Cone set up.

Do i need a stacker for my operation?

In short, yes you do. You may not know it as you've never had one. If you have the space for a stacker, take our advise and buy/hire one. Thank us later. The general comment after some buys a stacker is "I should have bought this years ago". As the old saying goes, its the cheapest loader you'll ever buy. Yes of course you still need to pick the material up to load trucks but you would be shocked at the amount of diesel you'll save and the pressure if takes off a loader operator. The downside to stackers, particular on larger material is segregation. There is ways to mitigate this problem. If you have any questions talk to our team.
